Feeding
Double manipulator feeding, and equipped with high-precision lead screw and guide rail.

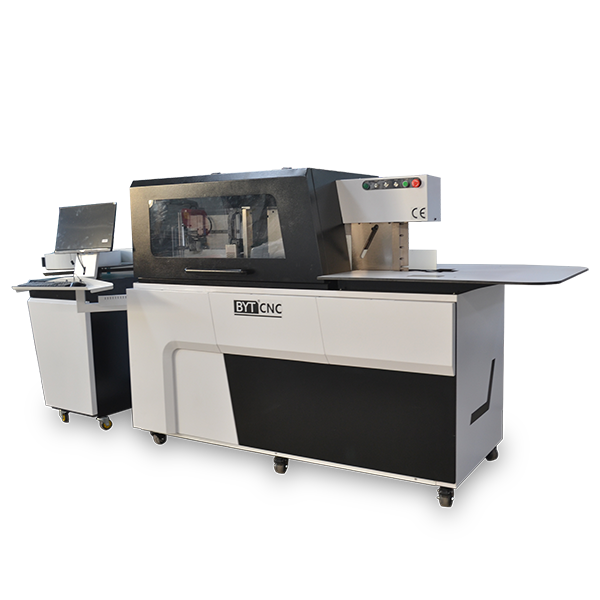

Channel Letter Bending Machine
BWZ-Flange
Automatic Channel letter bending machine
Certification:CE,ISO9001,FDA
Warranty: 2 Years
Machine Video
Machine Feature
V-notch flange
High precision servo motor control V-type slot.
Auto turn-up edge
Automatically recognize the turn-up edge（Edge-Fold） according to the font, and use circular axis bending to protect the surface of the material
Bending system
Dual-pole, servo-driven high-speed bending: zero deformation, ultra-high precision & speed
|
Model
|
BWZ-Flange
|
|---|---|
|
Function
|
Feeding-Slotting-V notch fange(Sawtooth-Punch)-Turnup edge（Edge-Fold)-Punching(Snip)-Bending-Cutting
|
|
Applicable Materials
|
Stainless steel.Flat aluminum,Galvanized,lron
|
|
Slotting & bending thickness
|
Aluminum: 0.6–2 mm; Stainless steel: 0.6–1.5 mm
|
|
V notch flange & turnup edge thickness
|
Flat aluminum: 0.8–1.2 mm
|
|
Note on V notch flange & turnup edge
|
Stainless steel, Galvanized, Iron 0.4–0.8 mm can be used, but material hardness may damage the machine; use is not recommended.
|
|
Slotting & bending width
|
20–220 mm
|
|
Min bending radius
|
R6 mm
|
|
Feeding method
|
Double manipulator + encoder
|
|
Process precision
|
±0.1 mm
|
|
Control System
|
Independently developed ADT 8-axis control system
|
|
Bending
|
Double pole bending device
|
|
Main motor
|
8 sets Servo Motor
|
|
Working Voltage
|
<5000 W
|
|
Air pressure
|
0.8 MPa
|
|
File format
|
dxf, Ai
|
|
Working voltage
|
220 V 50–60 Hz / 1P
|
|
Weight
|
750 kg
|
|
Overall size (L×W×H)
|
2.0×1.0×1.62 m + 1.0×0.63×0.66 m
|
|
Plywood package size (L×W×H)
|
2.26×1.0×1.82 m + 1.12×0.7×0.82 m
|
|
Gross weight
|
930 kg
|
Certifications
Found in 1996 BYT: The Oldest Manufacturer in the Industry.
Founded in 1996, BYT has consistently been committed to serving sign makers. Our products are distributed across 152 countries, serving tens of thousands of customers. With over 30 patents and certifications including CE, ISO9001, SGS, and FDA, we adhere to the highest international standards.
