laser welder handhold welding gun
DL-RWM: JP Handheld + CN Mil-Spec Mitsubishi Fiber & Patented Tech

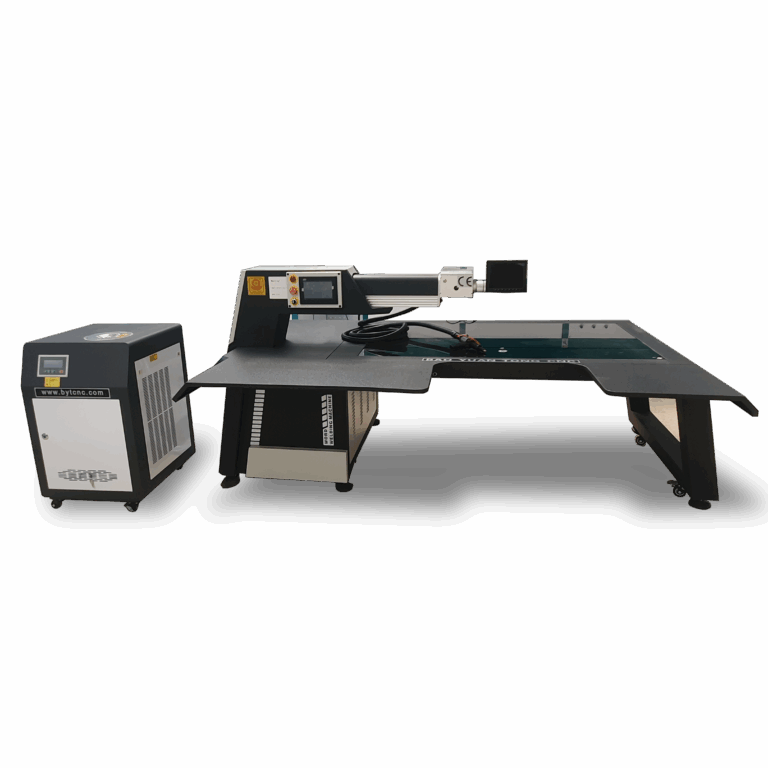

Laser Welder
BHJ-500W
Automatic Channel letter bending machine
Certification:CE,ISO9001,FDA
Warranty: 2 Years
Machine Video
Machine Feature
laser welder large workbench
UL Platform, XL Tempered-Glass Top – Ad-Letter Welding, Any Size
laser welder water chiller
Brand Hi-Power Chiller: 1P→1.5P / 2P→2.5P, Panasonic/Sony In-house Compressor
|
Model
|
BHJ-500W Double
|
|---|---|
|
Laser Power
|
500W
|
|
Laser Wavelength
|
1064nm
|
|
Monopulse Max Power
|
190J
|
|
Laser Welding Depth
|
0.1-3mm
|
|
Pulse Width
|
0.5-20ms
|
|
Laser Welding Frequency
|
1-50Hz
|
|
Electric Current
|
30-110A
|
|
Laser Spot Size
|
0.2-3.0mm
|
|
Total Power
|
≤16KW
|
|
Water Chiller
|
2P
|
|
Working Voltage
|
380V±10%/50Hz/3P/40A
|
|
Working Table Size
|
1000*1500mm
|
|
Sight Positioning
|
CCD Synchronism High Definition Camera
|
|
Laser Device Vertical Travel
|
≥200mm
|
|
Laser Horizontal Direction
|
200-800mm
|
|
Length of Optical Cable
|
≥5m
|
|
Overall Size (m)
|
0.78X0.75X1.15m/1.5X1X0.72m
|
|
Net Weight (kgs)
|
400
|
|
Laser Device Vertical Travel
|
1.65X0.85X1.35 (1.9cbm)
|
|
Gross Weight (kgs)
|
440
|
Certifications
Found in 1996 BYT: The Oldest Manufacturer in the Industry.
Founded in 1996, BYT has consistently been committed to serving sign makers. Our products are distributed across 152 countries, serving tens of thousands of customers. With over 30 patents and certifications including CE, ISO9001, SGS, and FDA, we adhere to the highest international standards.
